How to display the transferred design data on a monitor.

Issue

How to display the transferred design data (TN3) on a monitor.

How to deal

Please refer to the following procedure.

1) Tap "Menu" and "Project File Settings."

2) Select "Surfaces".

3) Touch "Import".

4) Select "3D Surface file（TN3,RD3,PL3)" in "What".

5) Select the target deign data displayed in the frame of "Surface files", and tap "Import."

6) "Add surface *** to the current project?" is displayed in the message box, tap "✓" to register the data.

7) Check if "Surface" is the design data you added.

If the project file contains multiple design data, tap "▼" in the image below to select the appropriate design data and complete registration.

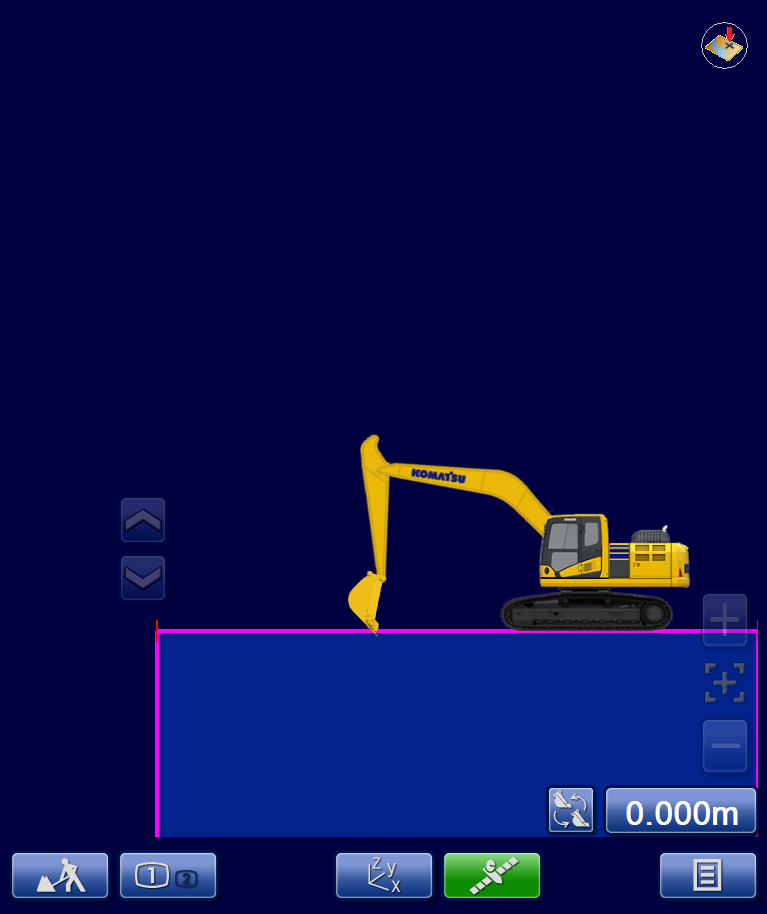

Tap the back button to return to the construction screen, and the set design data will be displayed on the monitor.

supplementation

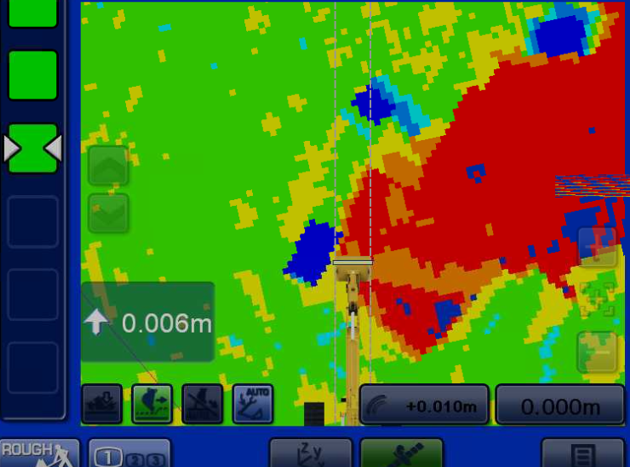

・The coloring (heat map)

The coloring (heat map), saved per project file (TP3).

By importing the design data (TN3) without changing the project file, the heat map colors can continue to be displayed.

※If the project file is changed, the accumulated The coloring (heat map)  will not be continued.
