How to set up the SL3 file on the machine side.

Issue

Although already sent an SL3 file to link the target jobsite and construction equipment, don't know how to set the settings on the machine side.

Answer

The site file can be set on the monitor.

Explanation

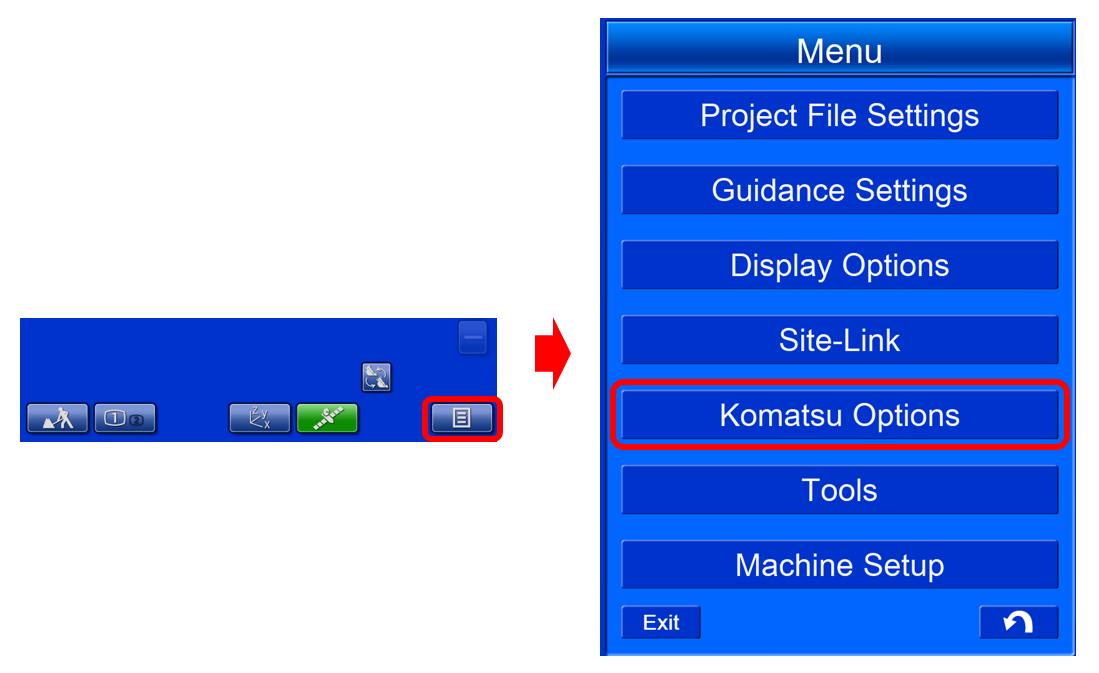

1) Select "Komatsu Option" from the menu.

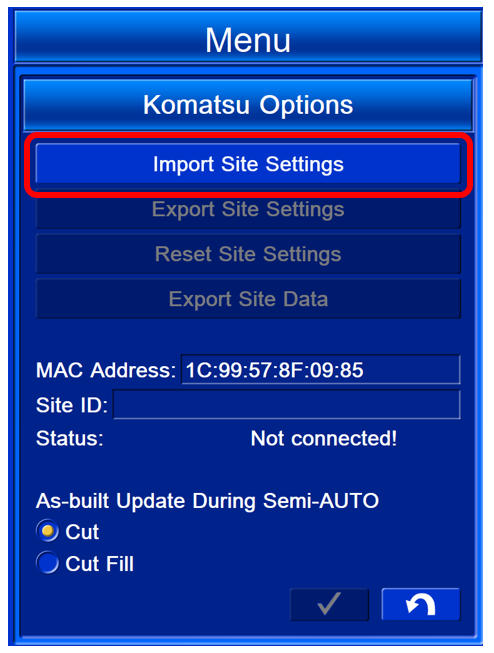

2) When the screen changes, select the "Import Site Settings."

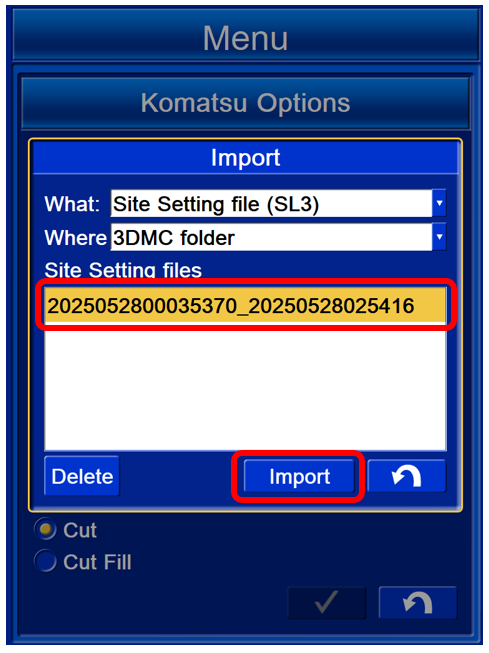

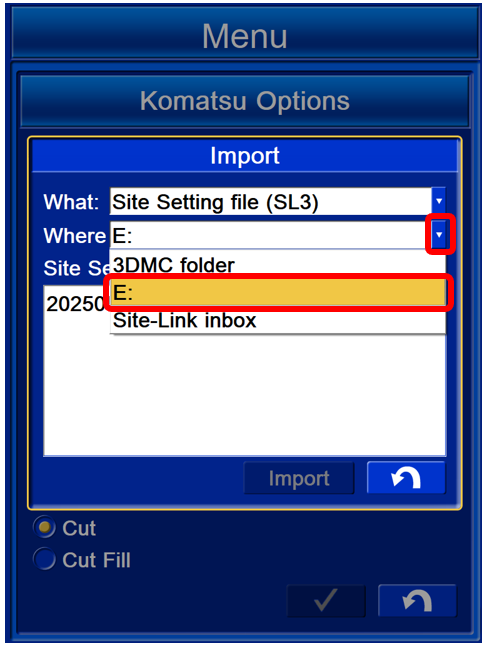

3) Select the file you want to set and click "Import".

4) The site ID will be changed to the file you have set and the status will read "Connected to server!" is displayed, the process is complete.
